Tangxi DMA Fuser Hardware Kit, 4K 60Hz HDMI Overlayer Synthesizer, 6th Generation Video Synthesizer with Built in Fan for Temperature Control

Specification: Item Type: DMA Fuser Kit Material: Aluminum Alloy Interfaces: HDMI​ Output: Connect to the main display (primary screen for gaming) HDMI​ 1 Host: Connect to host graphics card (computer for gaming) HDMI​ 2 Secondary: Connect to secondary graphics card Indicators: D1 Light: Power indicator light (remains on when powered on) D2 Light: Fuse on off indicator light H1 Light: HDMI​ 1 host input indicator light H2 Light: HDMI​ 2 auxiliary input signal indicator light Key Functions: Power Key: Power on off K1 Key: Display only auxiliary computer screen K2 Key: Display only host screen K3 Key: Activate fusion​​ key (pressing K3 continuously can increase stimulation strength) K4 Key: Restore factory settings How to Use: Refer to the user manual for detailed instructions Package List: 1 x Fuser 1 x ForMaKcu​ Box 1 x DMA Board 1 x USB to Type C Cable 1 x User Manual 3 x Multimedia Interface Cables 2 x USB to USB Cable 1 x USB to DC Cable Note: 1. 6th generation relies on device built in compatibility, no need to manually adjust resolution. Currently tested for compatibility with 95% of monitors and computers. 2. Different silk labels due to different manufacturing batches, cable colors are random, which does not affect usage.

• Product Purpose: It is refers to a direct memory access fusion device designed to optimize the efficiency of data transfer and processing. It is suitable for high bandwidth data transfer and processing scenarios, such as image processing, video encoding decoding, and network communications

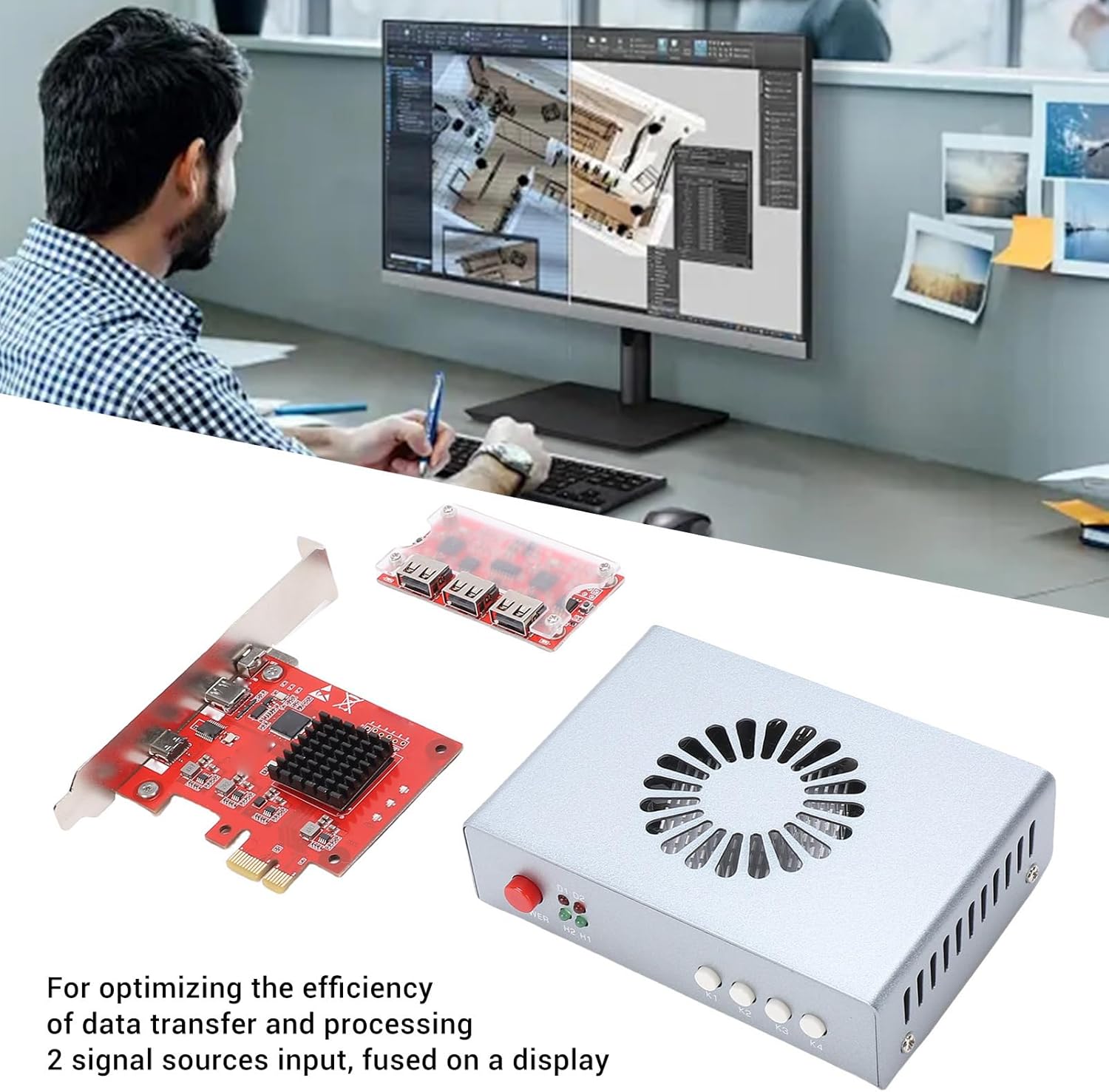

• Dual Signal Input: The DMA fuser supports 2 signal sources input, with the outputs simultaneously fused onto a single display. The images undergo overlay fusion, and the clarity of the overlay image can be adjusted. DMA requires two computers to operate online. By inserting the DMA access device into the PCIE interface of one device (without running any software), memory operation data from the DMA access device can be obtained on the other computer

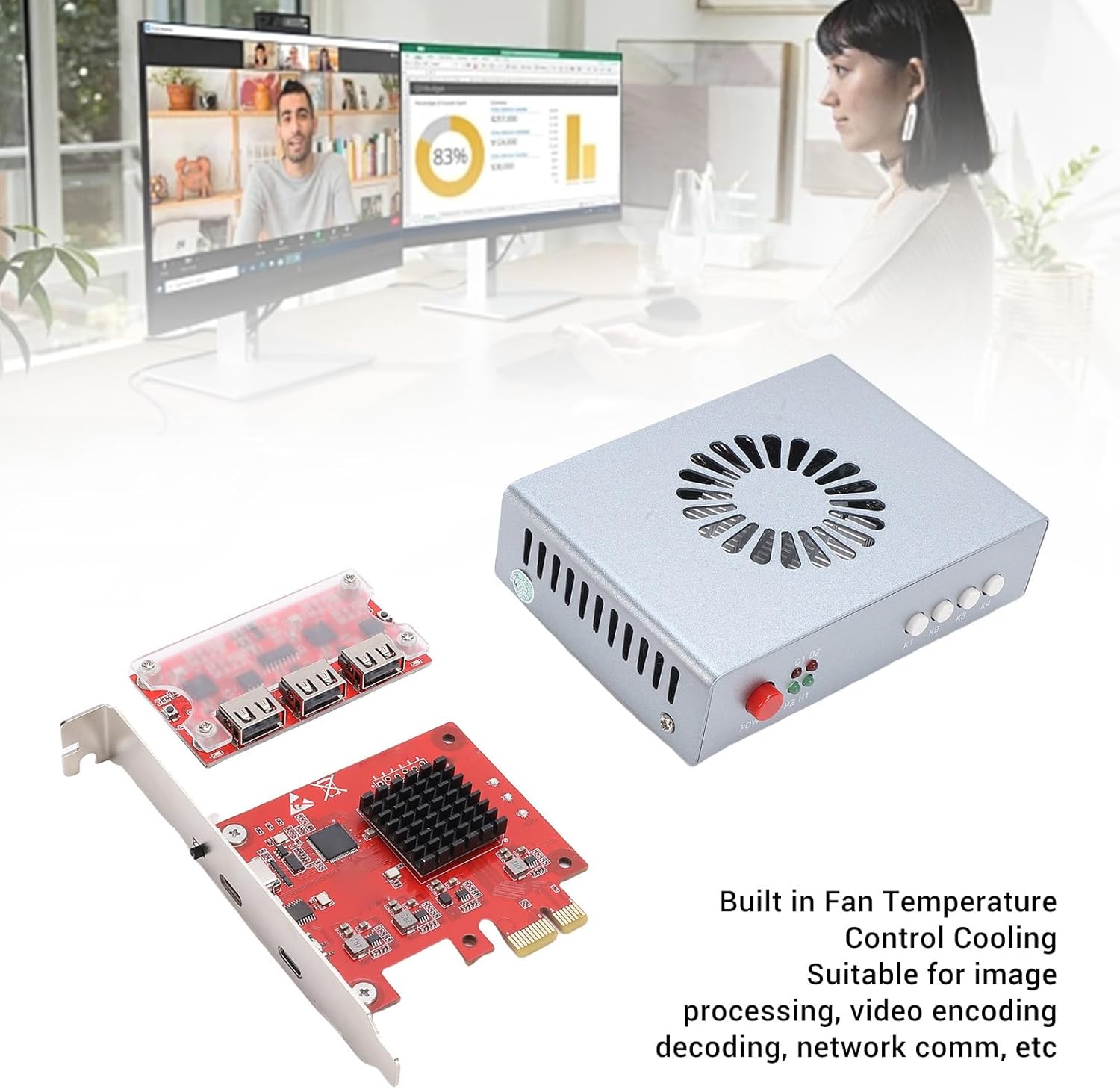

• HD Visuals and Fan: Supports switching to display a single full screen image with a maximum resolution of 3840x2160 at 60Hz; offering high definition, lossless image transfer. It features built in fan for temperature control cooling, simple and safe to operate
• Applications: DMA enables communicating between hardware devices operating at different speeds under the CPU underlying embedded framework protocol. It is suitable for securities trading floors, bank data centers, traffic safety emergency control centers, video conferencing, etc
• Working Mechanism: The DMA fuser replicates memory data collected through scanning from one address space to another. The scanning and transfer actions are implemented and completed by the DMA controller, which is legally permitted within computer embedded system algorithms
